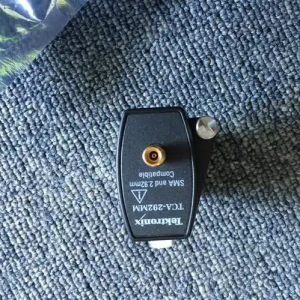

Tektronix 泰克TCA-292MM轉接頭

TekConnect TCA系列適配器擴展了Tektronix高性能示波器的功能。與將信號從一個環境移動到另一個環境的傳統連接(如BNC到N或BNC到SMA)相比，該系列適配器系統提供了更好的性能和更少的信號失真。

關鍵性能規范

TCA75 – TekConnect-to-75 Ω BNC

DC to ≥23 GHz (instrument dependent)
VSWR – 1.1:1 (26.45 dB)
75 Ω input
Auto Attenuation Factor Correction
TCA-BNC – TekConnect-to-TekProbe? BNC 50 Ω

DC to ≥4 GHz (instrument dependent)
50 Ω input (only)
For control of TekProbe BNC (50 Ω) probes
TCA-N – TekConnect-to-N

DC to ≥11 GHz (instrument dependent)
50 Ω input (only)
TCA-SMA – TekConnect-to-SMA

DC to ≥18 GHz (instrument dependent)
50 Ω input (only)
TCA-292MM – TekConnect-to-2.92 mm

DC to ≥25 GHz (instrument dependent)
50 Ω input (only)
SMA compatible
TCA292D – TekConnect-to-2.92 mm

DC to ≥33 GHz (instrument dependent)
50 Ω input (only)
SMA compatible
TCA-1MEG

DC to 500 MHz
1 MΩ input
TCA-VPI50

DC to 4 GHz
Use TekVPI Probes on MSO/DPO70000 Series Osilloscopes
50 Ω input (only)
Applications
Signal integrity, jitter, and timing analysis
Verification, characterization, and debug of sophisticated designs
High-speed digital devices and circuits
Semiconductor devices
Mobile communications
Investigation of transient phenomena
Spectral analysis
Video design and development
HDTV and streaming digital video
